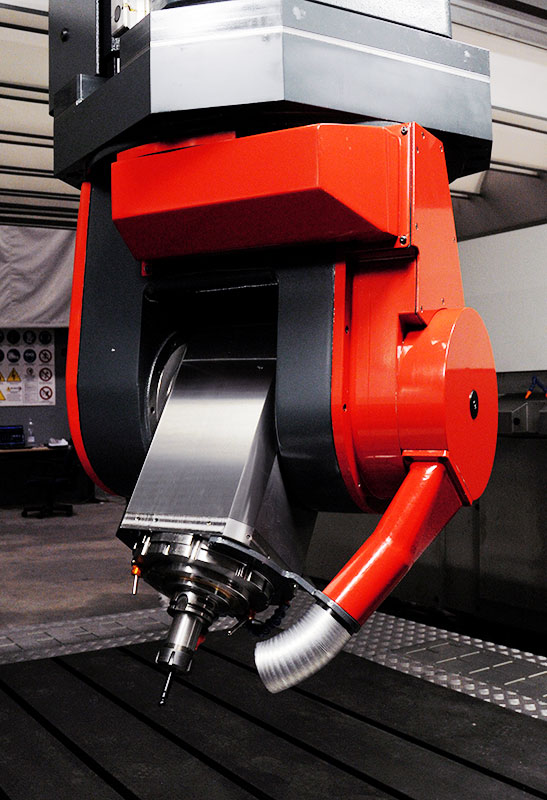

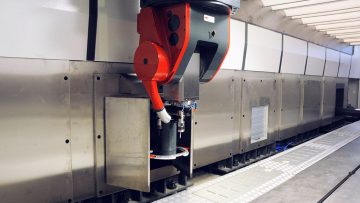

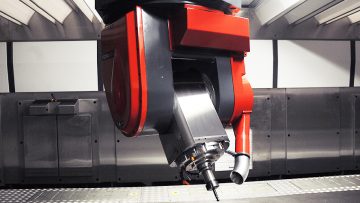

Made in aluminium alloy, M5C is the “light” version of M5A. This features enhances the performances of high speed machines and its compact asymmetrical structure makes easy machining of narrow and deep pockets.
M5C is the ideal solution to cut aluminium, composite, clay and resins.
|A axis travel||+95º ÷ -110º|
|C axis travel||C = ± 360º|
|Max. speed milling spindle||24000 1/min||20000 1/min|
|Max. power||35 kW||35 kW|
|Torque||56 Nm||56 Nm|
* with grease lubrification
