M5D offers an extraordinary volume of chip removal on aluminum, providing an unprecedented efficiency to the manufacturing of large aircraft structural parts. A dedicated cinematic has been conceived by FIDIA to deliver extreme dynamic on A and C axes. The spindle matches high power with high speed to highlight the rotative axes performance. From heavy roughing to finishing in one shot!

Features and layout

M5D Features
A axis travel±110º
C axis travel± 360º
Max. speed milling spindle30000 1/min12000 1/min
Max. power100 kW66 kW
Torque62 Nm252 Nm

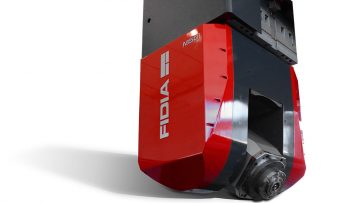

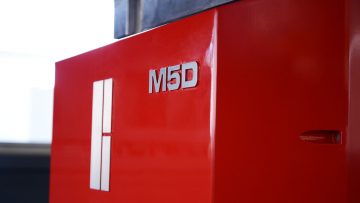

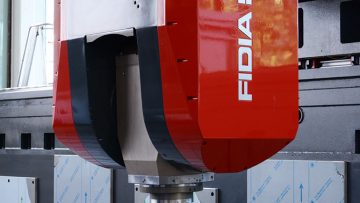

Photo gallery
